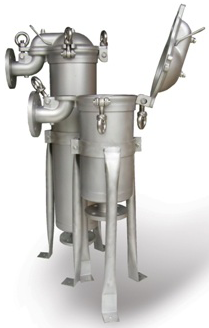

Top Entry Bag Filter Vessel

Top inlet bag filter designed to give you perfect 360 degree sealing of plastic collar fully welded filter bag sit inside the filter to ensure absolute no by pass, it gives you the top performance in your most challenging liquid filtration process.

Features

Best Sealing design suitable for critical filtration demands. Precision casting head to reduce pressure loss. Easy cleaning for your next job

ASME Design: 10 Bar/ 90 deg C design pressure

Max Flow Rate :

Size 1 – 20 m3/hr / Size 2 – 40 m3/hr  / Size 3 – 6 m3/hr  /  Size 4 – 12 m3/hr

Heating jacket available

Specification

Size – All 4 sizes available -1, 2, 3, 4. Pressure rating 10 Bar @ 90 deg C. Material – SS304, SS316, SS316L. O ring Buna N, EPDM, VITON

Connection ANSI, DIN, JIS Flange
